Product Brief

The Micro-computer Plastic Burning or Decomposition Smoke Density Test Apparatus is professional lab testing equipment to assess smoke generation characteristics. It performs measurement when samples burn or decompose under controlled conditions. The tester is not limited to plastic materials; it is also suitable for testing different types of building materials. This instrument meets ASTM D2843, DIN 4102 and GB/T 8627 standards. It uses photometric method to capture light attenuation caused by smoke, then computes smoke density values. It is widely used for fire hazard assessment of polymer and building materials in manufacturing factories and testing organizations.

Product Advantages

1. High-precision photometric module: The light source is a 15W bulb with 6V working voltage. It can test smoke density within 0~100% range with ±3% accuracy. The receiving lens focal length is 60-65mm to keep stable optical performance.
2. Flexible gas pressure regulation: Main burner pressure max 276kpa adjustable; auxiliary combustion chamber pressure 138kpa adjustable. It keeps stable combustion environment for repeatable test results.
3. High durability combustion chamber: Made of 1.2mm thick 304 stainless steel, combustion box size L300×W300×H790mm. Anti-corrosion and high temperature resistant for repeated test cycles.
4. Dual control panels for easy operation. Visual observation window allows real-time viewing of sample combustion and smoke formation.
5. Small footprint: Overall dimension 800500500mm and weight 35kg, easy to place and transport in laboratory.
6. Power supply AC220V±10%, 50Hz, power consumption only 0.5KW, energy saving.
7. Required fuel: 95% purity propane gas or equivalent gas, gas to be prepared by customer.

Application Fields

• Manufacturers of plastic raw materials and finished plastic items
• Building and interior decoration material plants
• Independent third-party fire testing laboratories
• University laboratories and material research centers
• Cable, rubber and polymer material manufacturers
• Fireproof material quality control and R&D departments

Technical Specifications

1. Gas source: 95% propane gas or higher purity, or gas with same purity (customer supply)
2. Photometric system: 15W bulb light source, working voltage: 6V
3. Smoke density measurement range: 0 ~ 100%
4. Smoke density measurement accuracy: ±3%
5. Receiving lens focal length: 60 ~ 65 mm
6. Main burner work pressure: 276 kpa (adjustable)
7. Auxiliary combustion chamber pressure: 138 kpa (adjustable)
8. Supply voltage: AC220V±10%, 50Hz
9. Using power: 0.5 KW
10. Combustion box dimension: L300W300H790(mm)
11. Equipment overall dimensions: 800 * 500 * 500 mm
12. Combustion box material: 304 steel plate, thickness of 1.2 MM
13. Weight: 35 Kg

After-sales Service

• Full machine 1-year warranty (consumable & wearing parts excluded).
• Lifetime after-sales technical service.
• Complete English user manual and operation guidance provided with shipment.
• Remote online support for installation, commissioning, operation and fault diagnosis.
• Cost-price spare parts supply after warranty period.
• Pre-sales technical consultation service to confirm applicable standards and test plans.

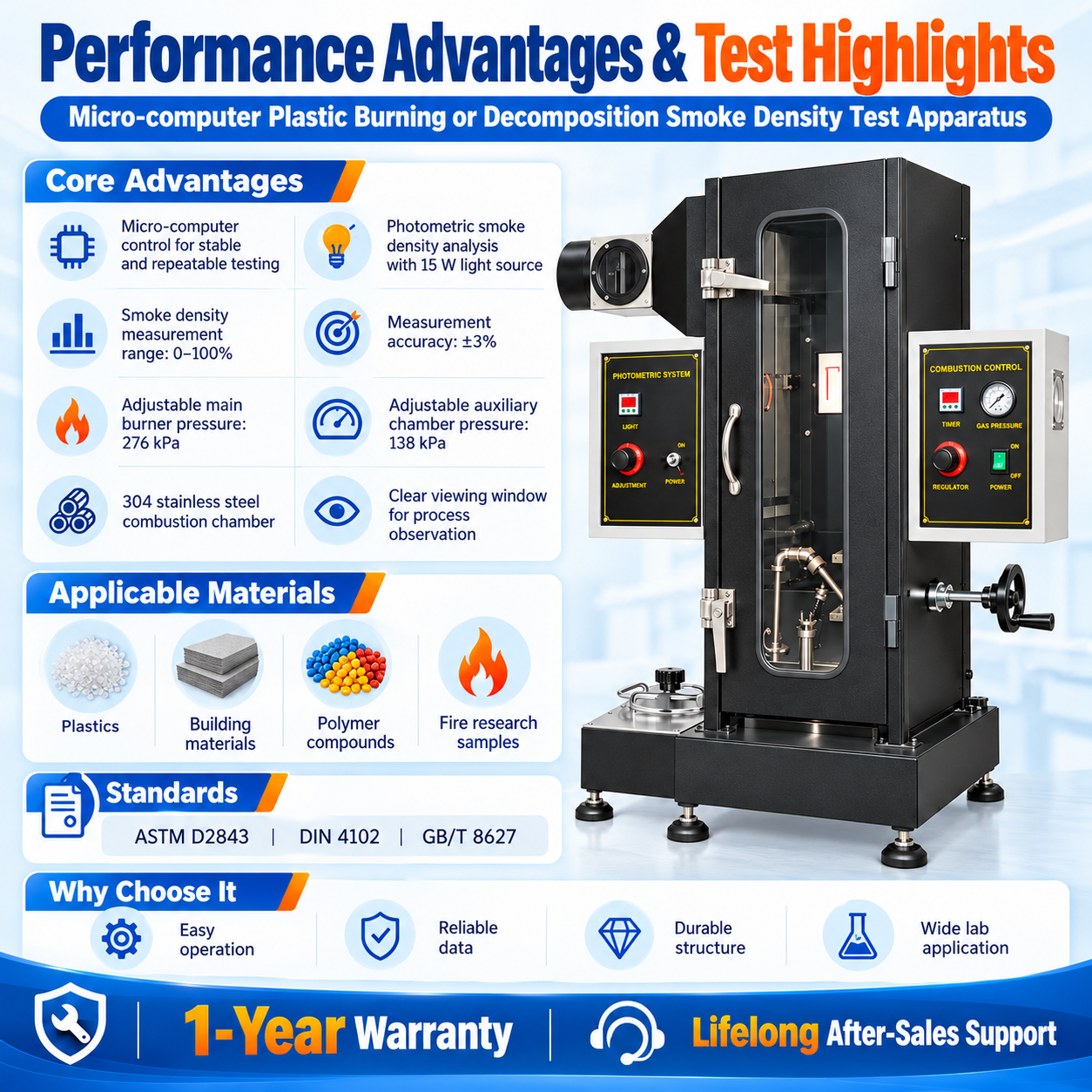

Plastic Burning & Decomposition Smoke Density Testing Machine, Photometric Smoke Density Test Equipment for Fire Safety Performance Evaluation Images
